Create a Component

Audience: Developers

Overview​

Components can be created in the Software Catalog using software templates. Templates load skeletons of code, which can include some variables, and incorporate your company's best practices. The templates are published to a location, such as GitHub or GitLab.

The standalone Backstage application includes the Example Node.js Template, which is an example template for the scaffolder that creates and registers a simple Node.js service. You can also create your own templates.

Prerequisites​

For this example, the default Node.js template will be used. The template creates a repository in GitHub and adds the necessary files to it so that the component is integrated into the Software Catalog. Because you are creating a repository, you must first create an integration between Backstage and GitHub.

Creating the component​

To create the component:

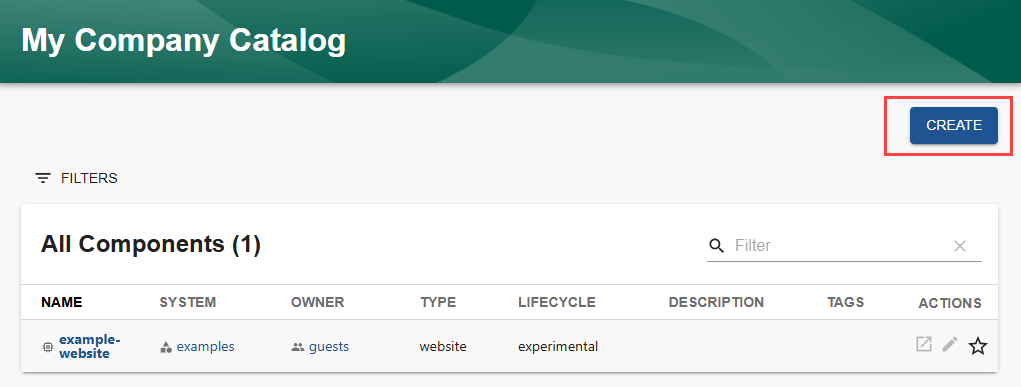

  1. Select Create.

    select create for new component

  2. Select Service in the CATEGORIES dropdown list.

  3. Select the Owner. For this example, you can select guest.

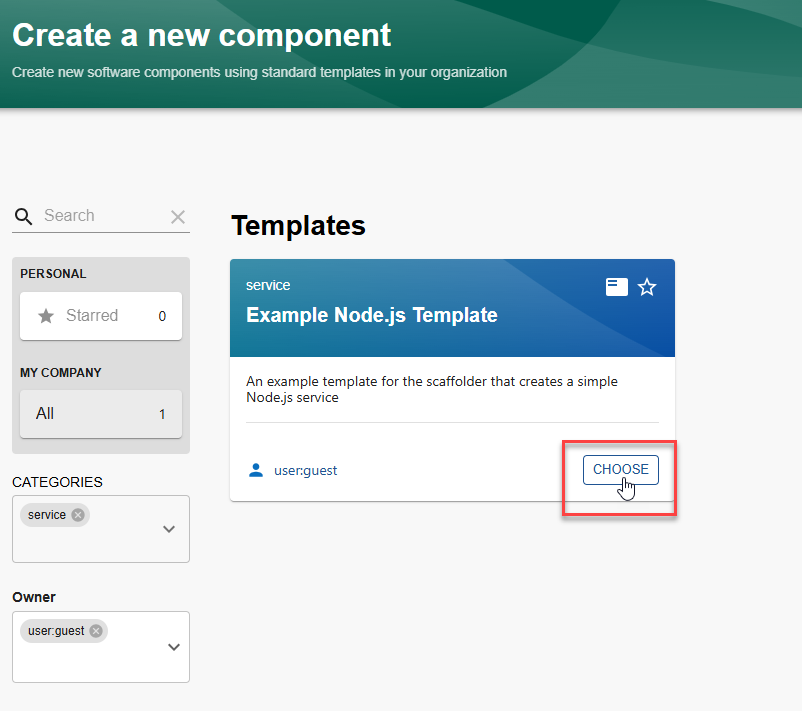

  4. Select Choose in the Example Node.js Template.

    setup-nodejs-categories-owners

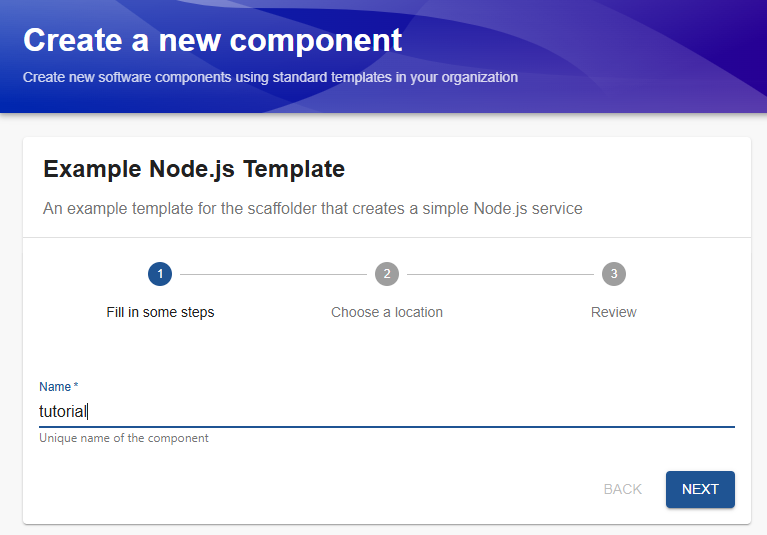

  5. For this example, enter tutorial for the Name of the service and select NEXT.

    enter name of new component

  6. Enter your GitHub user name as the Owner.

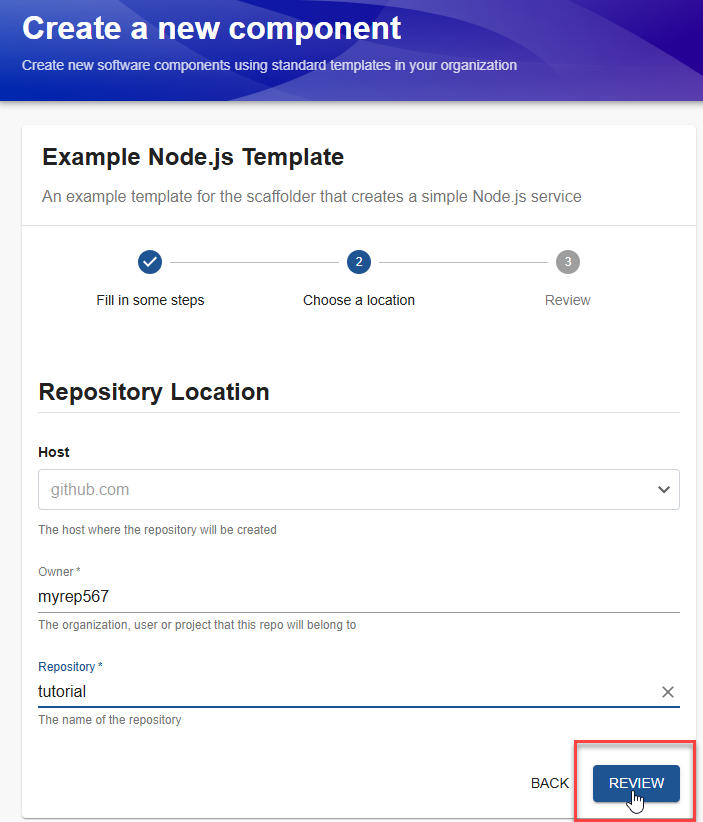

  7. Enter tutorial for the Repository and select REVIEW.

    select review create component

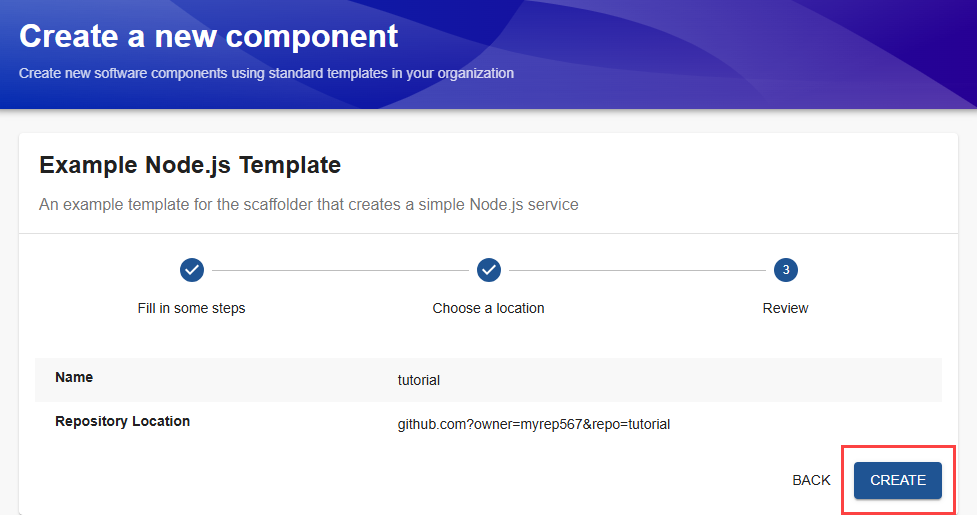

  8. Review the information and select CREATE.

    select create to make component

If you see an error message, similar to the following,

![error creating new component](../assets/uiguide/error-creating-new-component.png)

Perform the following steps:

  1. Close the Backstage app.

  2. Enter CTRL-C in the terminal window to stop the Backstage frontend and backend.

  3. In the terminal window, enter:

    export NODE_OPTIONS=--no-node-snapshot

    NOTE: The no-node-snapshot NODE_OPTIONS environment variable is required in order to use the templates.

  4. Enter yarn start to restart the Backstage application.

  5. Repeat steps to create the component.

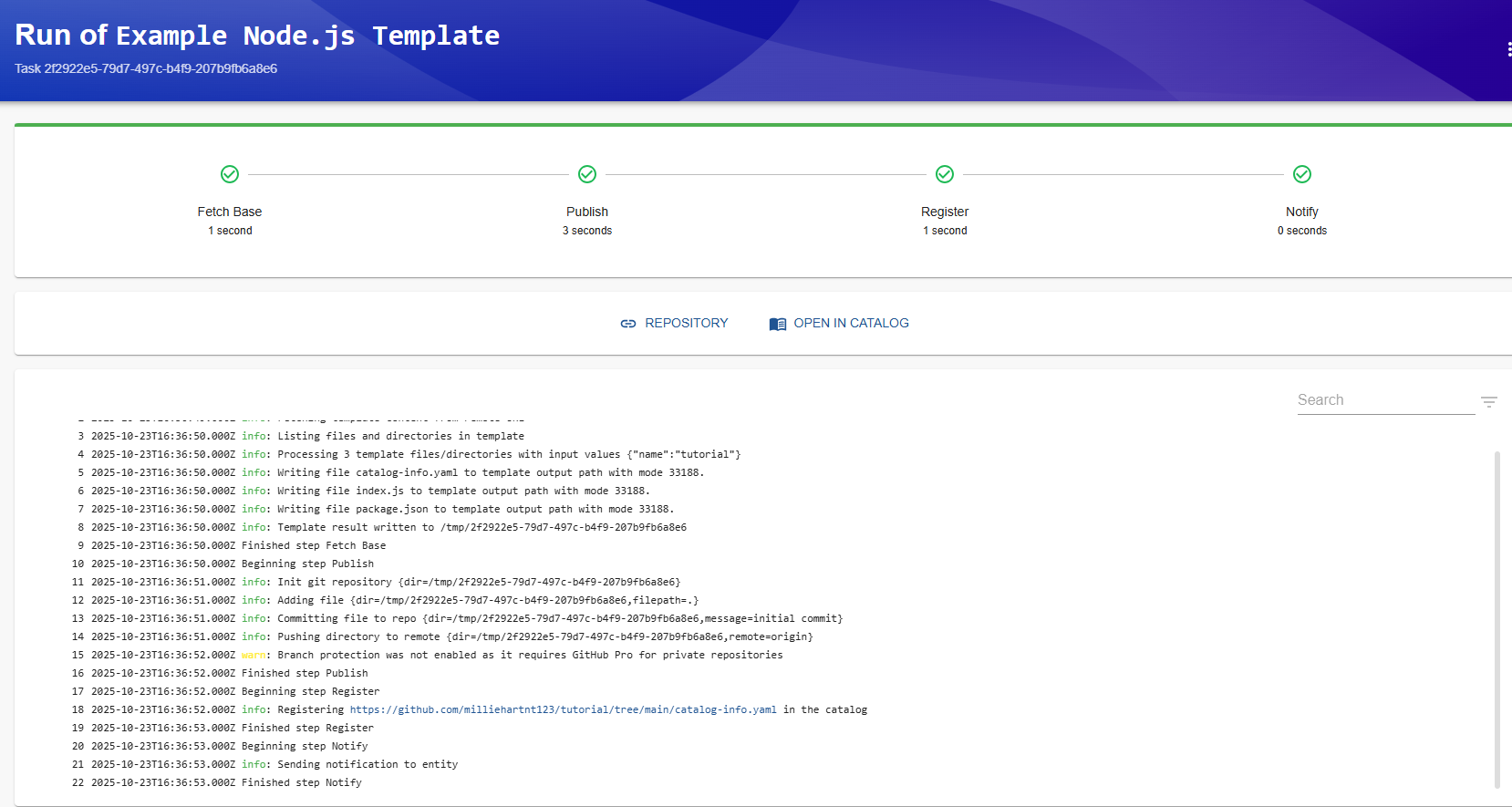

Otherwise, you can follow along with the progress, and as soon as every step is finished, you can take a look at your new service in either the repository or the Catalog.

run of example of create component

Selecting REPOSITORY displays the catalog-info.yamlfile and other project setup files that were created for the new component in the main branch of the tutorial repository.

The catalog-info.yaml file describes the entity for the Software Catalog. Descriptor Format of Catalog Entities provides additional information.

 apiVersion: backstage.io/v1alpha1
 kind: Component
 metadata:
   name: "tutorial"
 spec:
   type: service
   owner: user:guest
   lifecycle: experimental

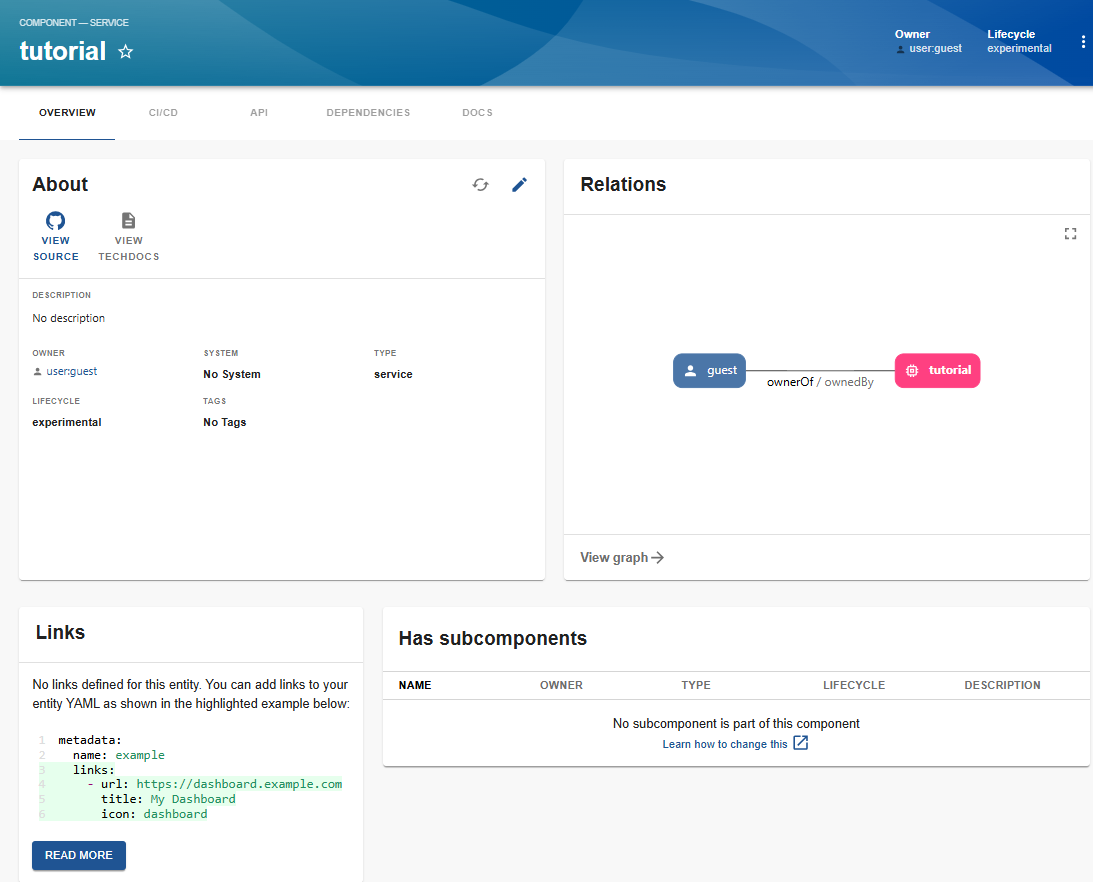

Selecting OPEN IN CATALOG displays details of the new component, such as its relationships, links, and subcomponents.

select open in catalog

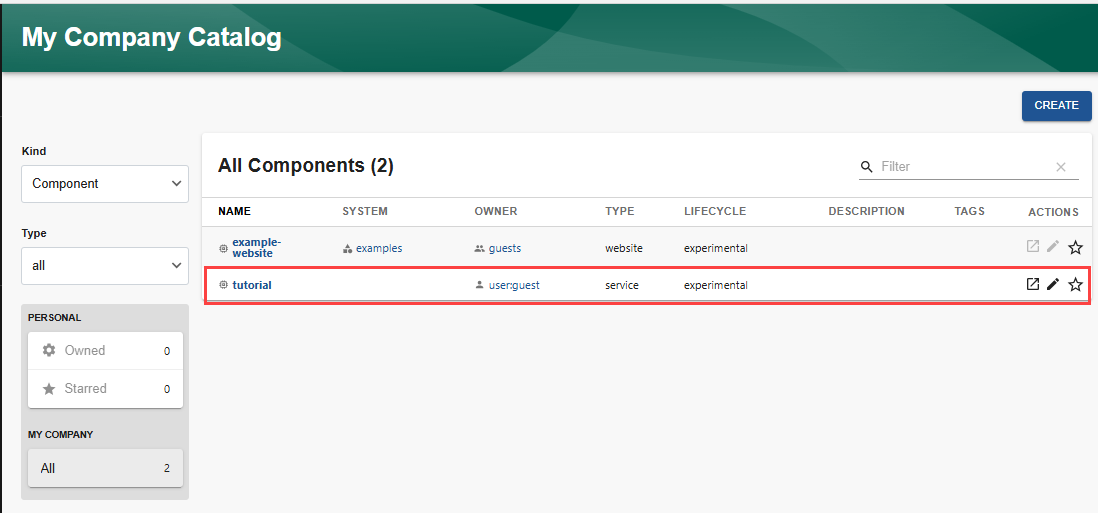

Selecting Home in the sidebar, displays the new tutorial component in the Catalog.

new tutorial component in software catalog
